PRODUCT CASE

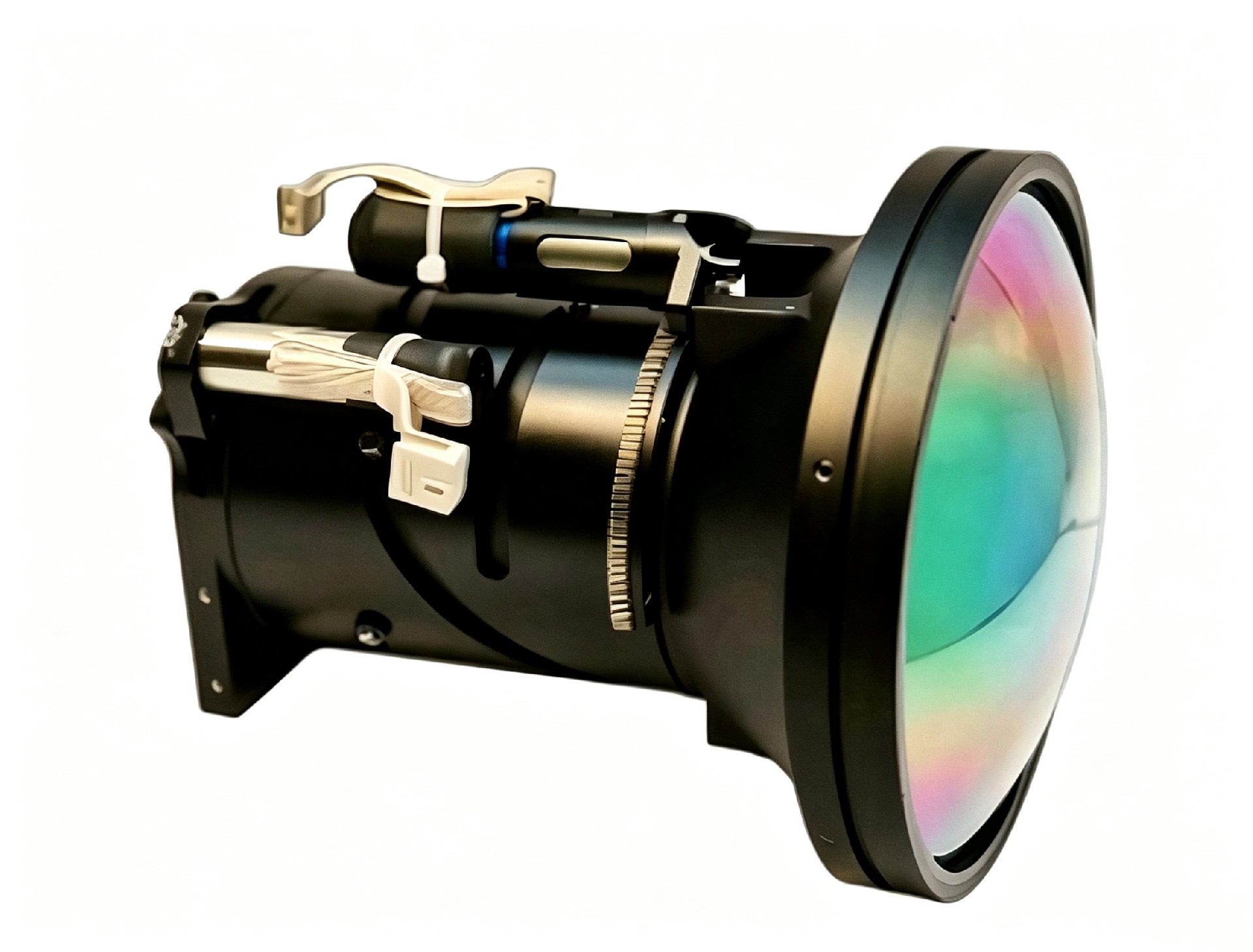

YF-10
Infrared Zoom Optical Lens 10
640×512 | 15μm DetectorDual FOV: Wide & NarrowMotorized Zoom & FocusMid-wave IR 3.7~4.8μm
Replace this placeholder with your actual product image later
Optical & Mechanical Specifications
| Parameter Item | Wide FOV | Narrow FOV |
|---|---|---|
| Focal Length | 30mm | 120mm |
| Field of View | 18.1° × 14.5° | 4.5° × 3.6° |
| Detector Spec. | 640×512, 15μm Pixel | |
Remark: Dimension refers to distance from first lens surface to focal plane.
