PRODUCT CASE
YF-3

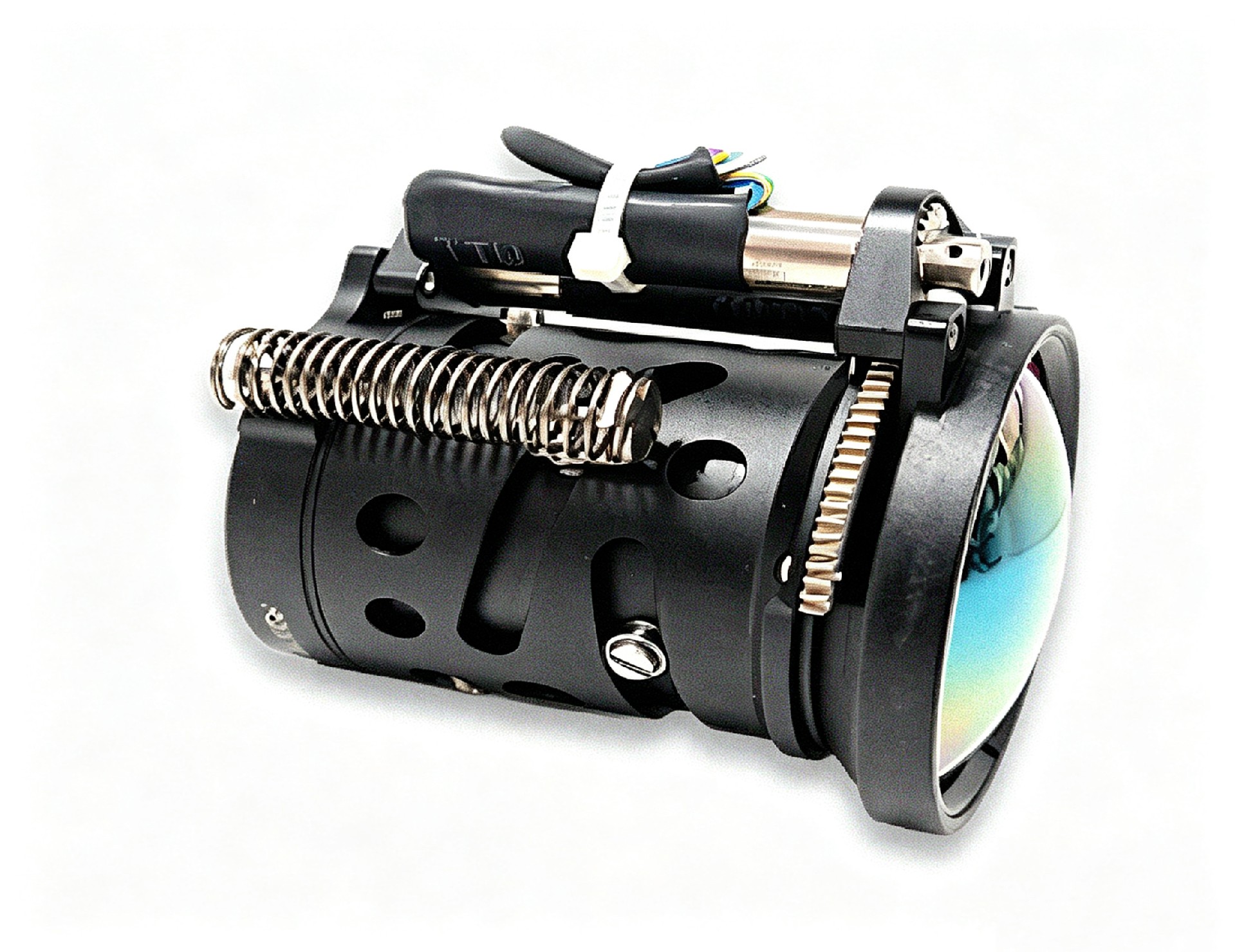

Infrared Zoom Optical Lens 3
640×512 | 15μm DetectorDual FOV: Wide & NarrowMotorized Zoom & FocusMid-wave IR 3.7~4.8μm
Replace this placeholder with your actual product image later
Optical & Mechanical Specifications
| Parameter Item | Wide FOV | Narrow FOV |
|---|---|---|
| Focal Length | 15mm | 60mm |
| Field of View | 37.5° × 30° | 9.4° × 7.5° |
| Detector Spec. | 640×512, 15μm Pixel | |
Remark: Dimension refers to distance from first lens surface to focal plane.
