INDUSTRIAL LENS
INDUSTRIAL LENS

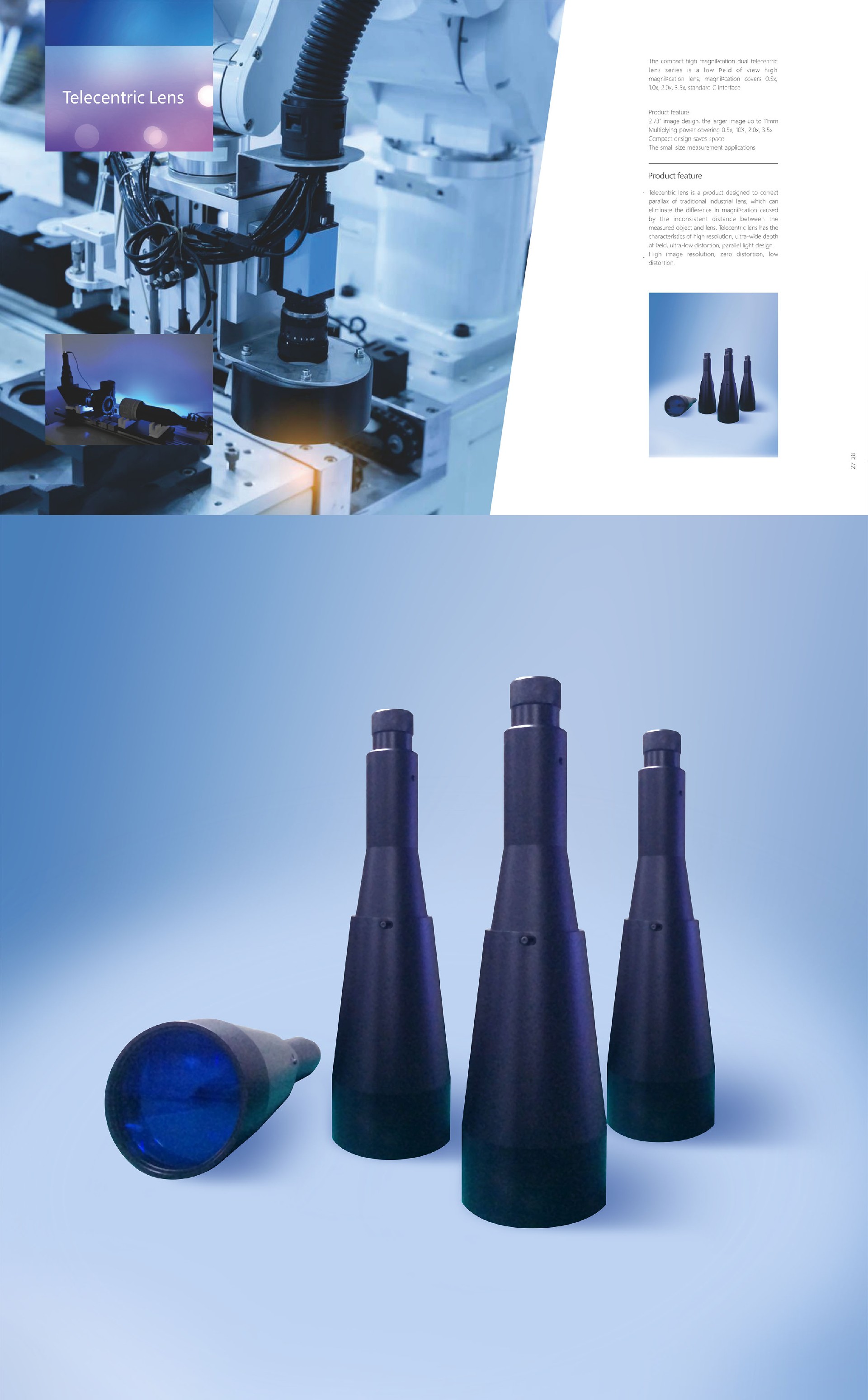

The compact high magnifcation dual telecentric lens series is a low field of view high magnification lens, magnification covers 0.5x,1.0x,2.0x,3.5x,standard C interface
Product feature:
2 /3"image design, the larger image up to 11mm
Multiplying power covering 0.5x,10X,2.0x, 3.5x
Compact design saves space
The small size measurement applications
Product feature:
Telecentric lens is a product designed to correct parallax of traditional industrial lens, which can eliminate the difference in magnification caused by the inconsistent distance between the measured object and lens. Telecentric lens has the characteristics of high resolution, ultra-wide depthof field, ultra-low distortion, parallel light design.High image resolution, zero distortion, lowdistortion.
| Product List | ||
| YFTC-WD Series | Support 1 magnification, working distance 110~270, maximum support 1.1 "sensor | See the attachment for further information |
| YFTC-2M/4MHR Series | High resolution dual telecentric lens supports up to 4/3 "large detector | |
| YFTC-12K Series | Telecentric lens for 12K and 16K pixel line scan cameras | |
| YFPC Series | Ring outside lens, 360° for top and side images, up to 2/3 "sensor support | |
| TCWD 080-110-1.1 C | Long working distance telecentric lens with up to 1.1 "sensor support | |
| TCWD 050-110-1.1 C | Long working distance telecentric lens with up to 1.1 "sensor support | |
| TCWD 020-180-1.1 C | Long working distance telecentric lens with up to 1.1 "sensor support | |
